Focuses on Important Matters

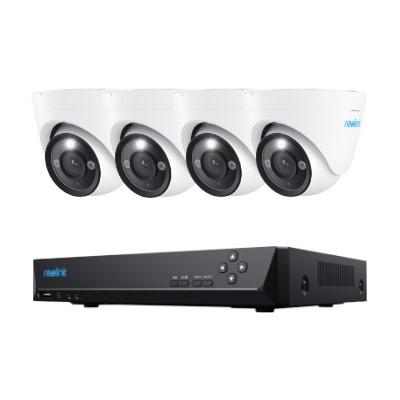

Featuring person/vehicle detecting technology, RLK8-1200D4-A will let you know whether a person or a vehicle is on your property and send you accurate alerts. Also, it can help you keep an eye on your pets. You don’t have to waste time checking all alarms to find the important ones.
Night Vision with Ultra Clarity & Color
With a powerful spotlight and two IR LEDs on each camera, darkness will no longer prevent you from checking things that are not obvious at night. You can see more details in full color without worrying about poor lights.
Easy PoE Setup
No power cable or adapter is needed. RLK8-1200D4-A with Power over Ethernet (PoE) technology needs only one single network cable for each camera. Less wiring, less cost, more convenience.
Person/Vehicle Detection
12MP Ultra HD
Power over Ethernet
8-Channel NVR
Video & Audio
Image Sensor
1/2.49" CMOS Sensor
Video Resolution
Default: 4512X2512 (12 megapixels) at 20 frames/sec
Lens
f=4.0mm; F=1.6, with IR-cut filter
Video Format
H.265
Field of View
• Horizontal: 93°
• Vertical: 49°
Day & Night
Auto-switching with IR-cut filter
Infrared Night Vision
30 meters (LED: 2pcs/28mil/850nm)
Color Night Vision
Spotlight: 1pcs/4.3W/6500K/700 Lumens
Audio
Two-way audio (via Reolink App/Client)
Power
PoE
IEEE 802.3af, 48V Active
DC Power
DC 12.0V⎓1A, <12W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45
Audio
Built-in microphone and speaker
Software Features
Frame Rate
• Mainstream: 2fps - 20fps (default: 20fps)
• Substream: 4fps - 20fps (default: 10fps)
Code Rate
• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
• Substream: 128Kbps - 1024Kbps (default: 768Kbps)
Smart Alarm
Motion detection; person detection; vehicle detection; pet detection
Record Mode
Motion-triggered recording (default); scheduled recording; 24/7 recording
Working Environment
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP67
Size & Weight
Dimension
Φ117.4*103.7mm
Weight
510g
Warranty
Limited Warranty
2-year limited warranty with Reolink
