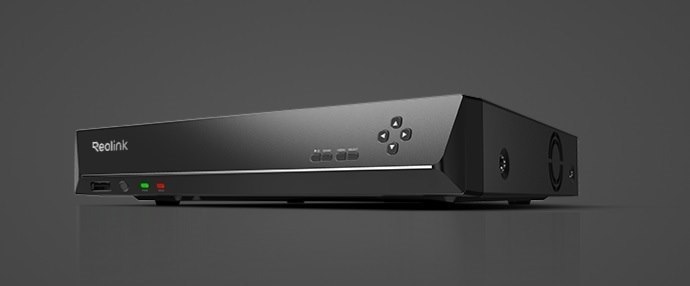

16 Channel Business NVR w/ PoE Ports
- Support up to 16MP
- Power over Ethernet (Built in Ports)
- 16-Channel
- 4TB HDD Built-in
Hardware
4TB HDD: N6MB01
IP Video Input
PoE IP camera x 16
Audio Input
Cameras with built-in mic
Video Output
VGA, HDMI
Display Resolution
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768
• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio output
1-channel, RCA
Live View / Playback Resolution
7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p
Video Format
H.265, H.264
Synchronous Playback
Up to 4 channels
HDD
SATA
2 x SATA interface (1 x 4TB HDD included)
Capacity
Up to 12TB (max. 6TB capacity for each HDD)
External HDD
No
USB Interface
2 x USB 2.0
Network Interface
• 1, RJ-45 10/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
• 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
Power Supply
DC 48V~54V
Power Consumption
<10W (without HDD & PoE)
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Dimensions
330 x 45 x 285mm
Weight
2.4kg
