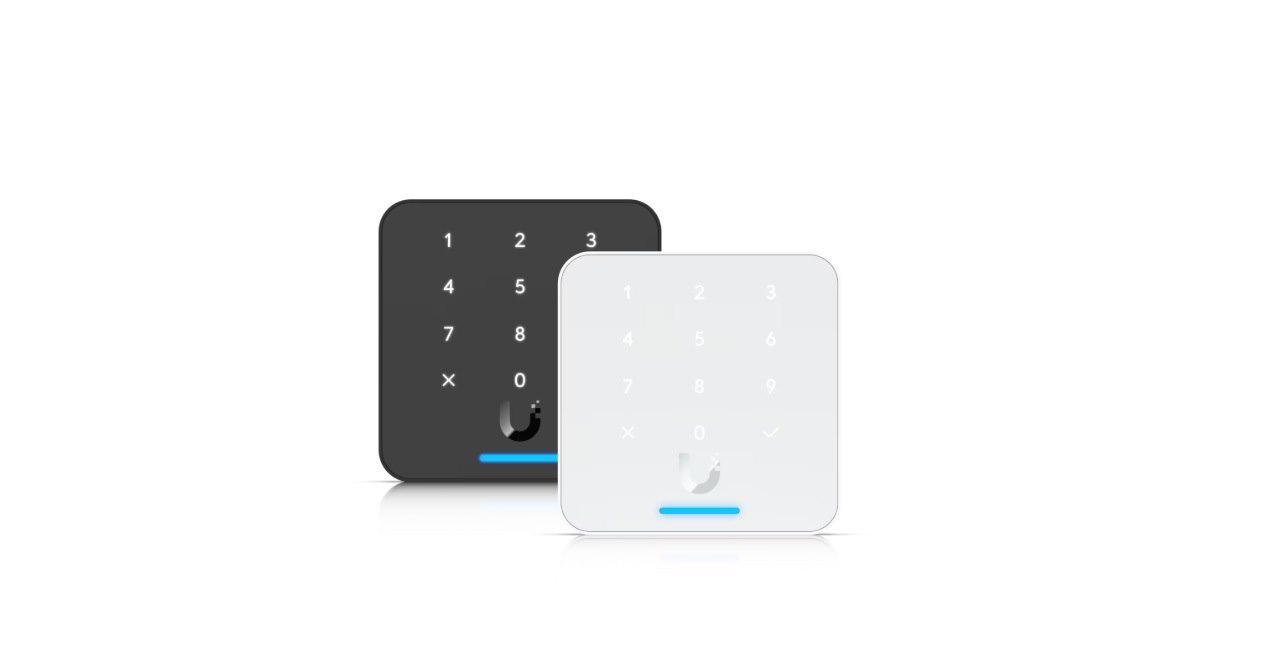

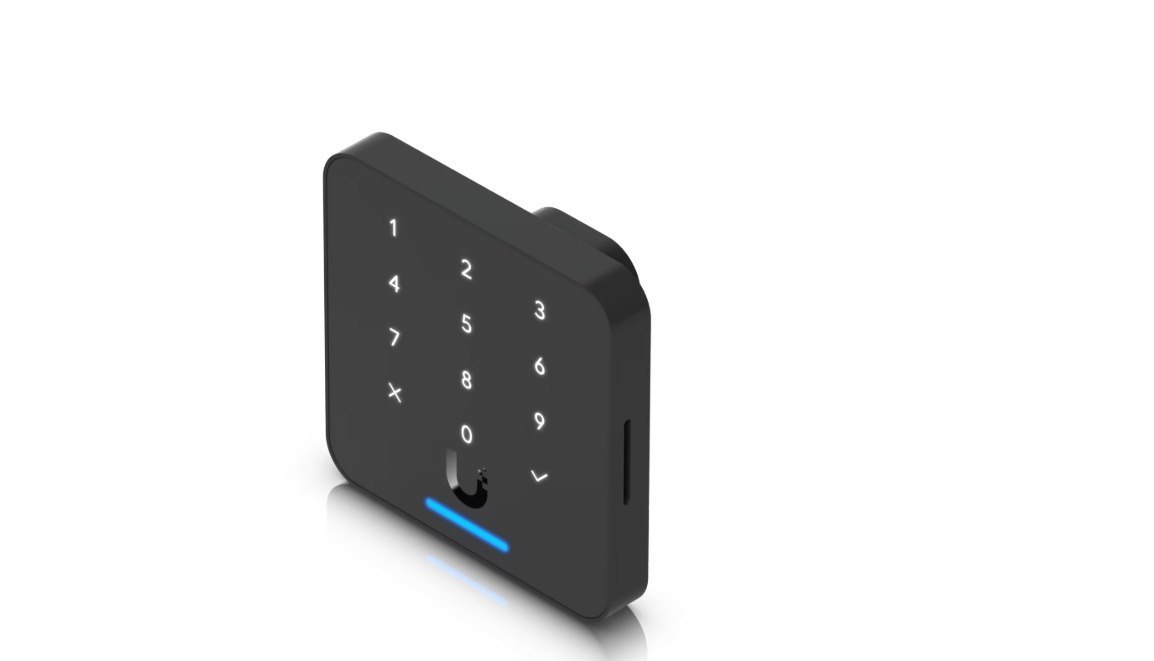

The UniFi UA-G3-Flex Access Controller is a compact, high-security door access device supporting multiple authentication methods, including NFC cards, keyfobs, PINs, and mobile unlock via Apple/Google Wallet. Designed for indoor and outdoor environments, it combines robust mechanical design with enterprise-grade security compliance.
Key Features:
Access Methods: NFC card & keyfob, PIN, mobile unlock (Apple/Google Wallet)
Security Standards: NDAA compliant; UL 294 Level I (destructive attack, line security, endurance, standby power)
Weatherproofing: IP55

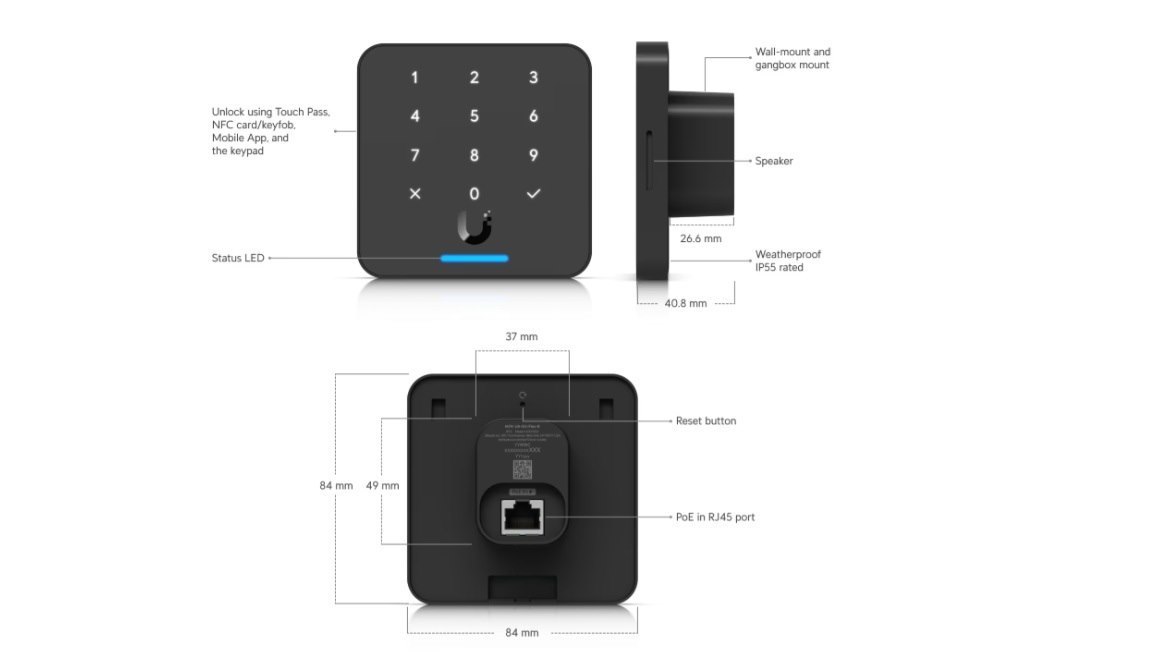

Mechanical: 84 × 84 × 40.8 mm (3.3 × 3.3 × 1.6 in), 165 g; enclosure: polycarbonate, glass, aluminum alloy

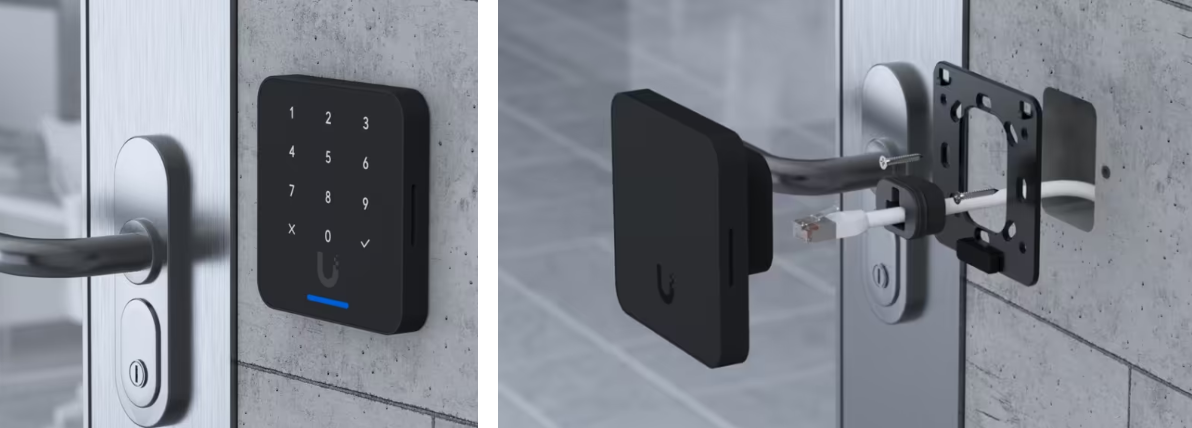

Mounting Options: Wall mount included; gang-box or junction box optional
Hardware & Connectivity:
Indoor/outdoor use

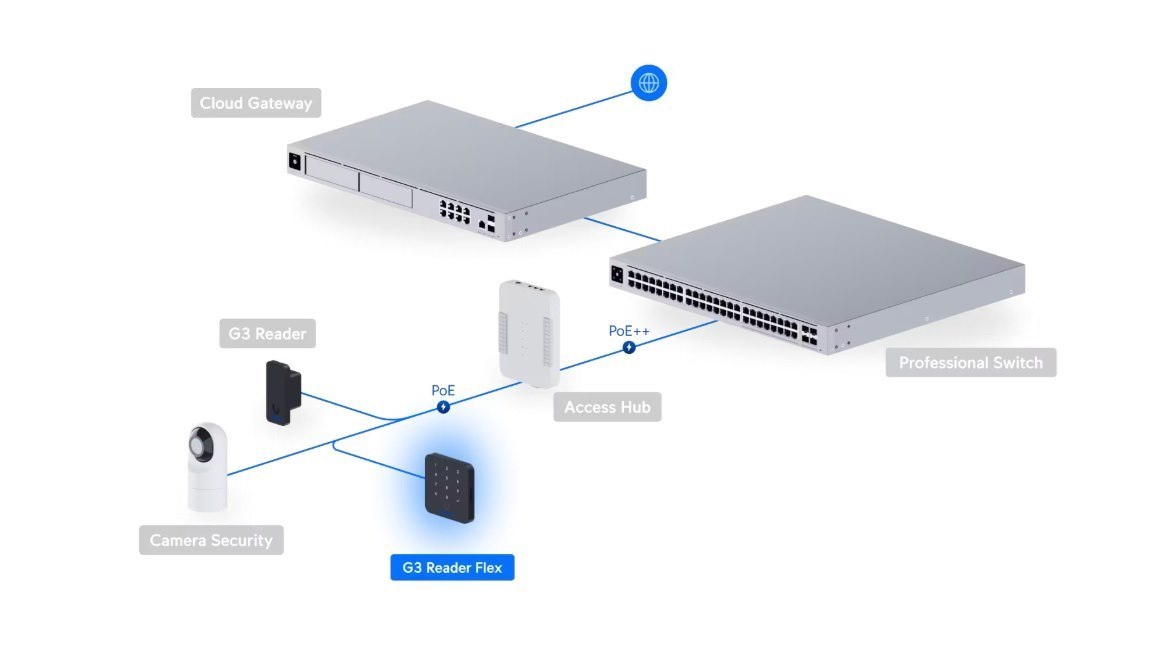

Networking: (1) 10/100 MbE RJ45 port, PoE powered (44–57V DC, max 5W)
BLE 4.1, NFC (13.56 MHz, <30 mm read range, supports MIFARE, Sony FeliCa, NFC Forum T1–T5 tags)
Capacitive buttons (12), speaker, RGBW LEDs, factory reset button
ESD/EMP protection: Air ±15kV, contact ±8kV
Operating Conditions: -30 to 60°C (-22 to 140°F), 5–90% RH non-condensing
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Ideal For:
Secure access control in commercial or residential environments requiring multiple authentication options, weather resistance, and high security standards in a compact form factor.
