Key Features:

• Applications Supported: UniFi Protect and UniFi Access (Vantage Point enabled)

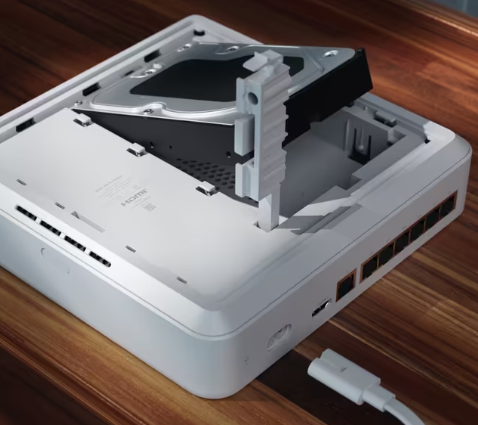

• Storage: (1) 3.5" HDD bay with integrated data protection

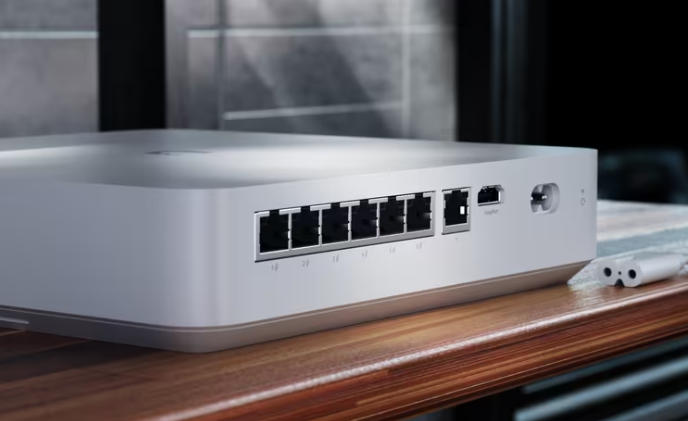

• Networking: (1) GbE RJ45 uplink, (6) GbE PoE RJ45 downlink ports (40W PoE budget, 15.4W max per port)

• Processor & Memory: Quad-core ARM® Cortex®-A55 1.7 GHz CPU, 4 GB RAM

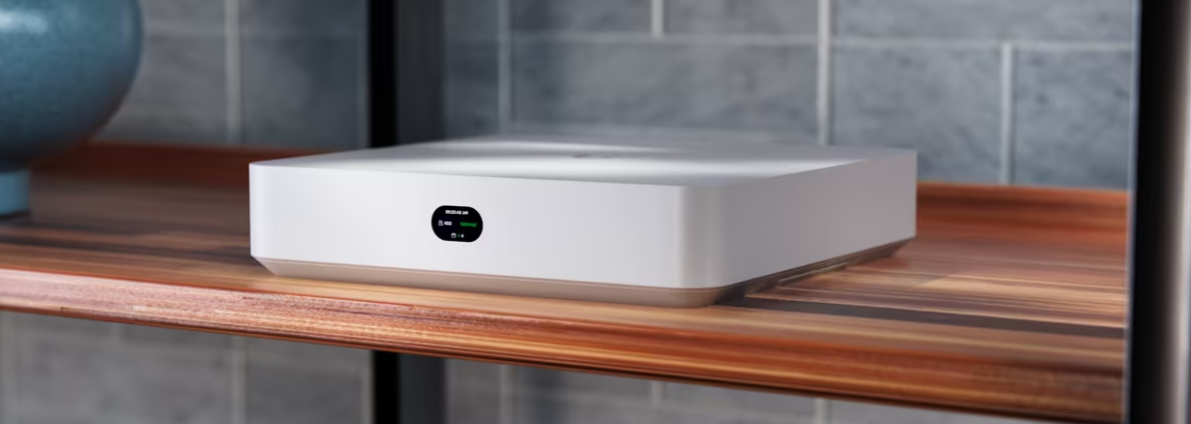

• Display & Management: 1.14" built-in display, Ethernet and Bluetooth management

• Power: Internal 60W AC/DC power supply; 100–240VAC input

• Connectivity: (1) HDMI Viewport output

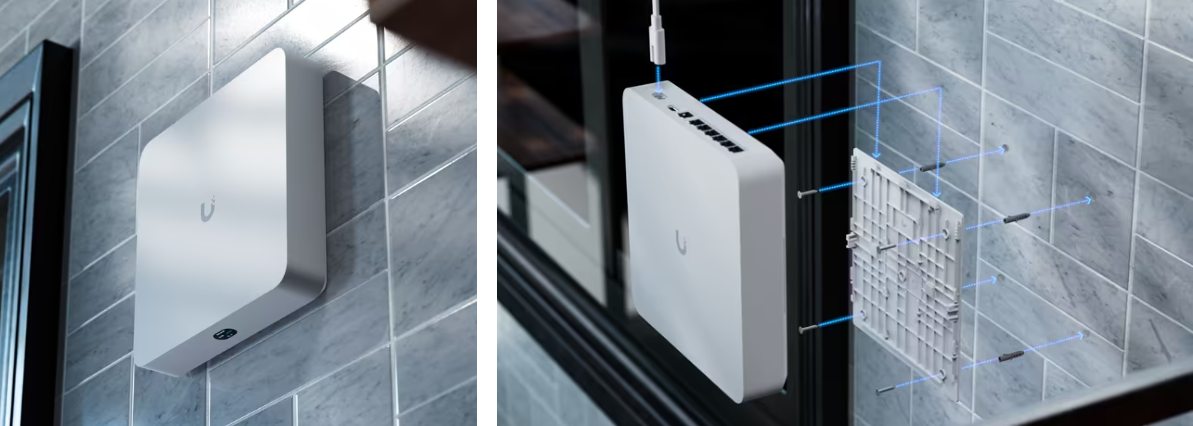

• Mounting Options: Compact desktop, wall, or DIN rail (mounting kit included)

• Operating Conditions: 0–40°C (32–104°F), 5–95% non-condensing humidity

• Compliance: NDAA compliant; FCC, IC, CE, Electrical Safety, SRRC certified

• Enclosure: Durable polycarbonate construction; weight 1.04 kg (2.3 lb)

• Dimensions: 220 × 220 × 47 mm (8.7 × 8.7 × 1.9 in)

Ideal For:
Small to mid-sized deployments requiring unified management of video surveillance and door access systems in a compact, efficient, and NDAA-compliant form factor.
