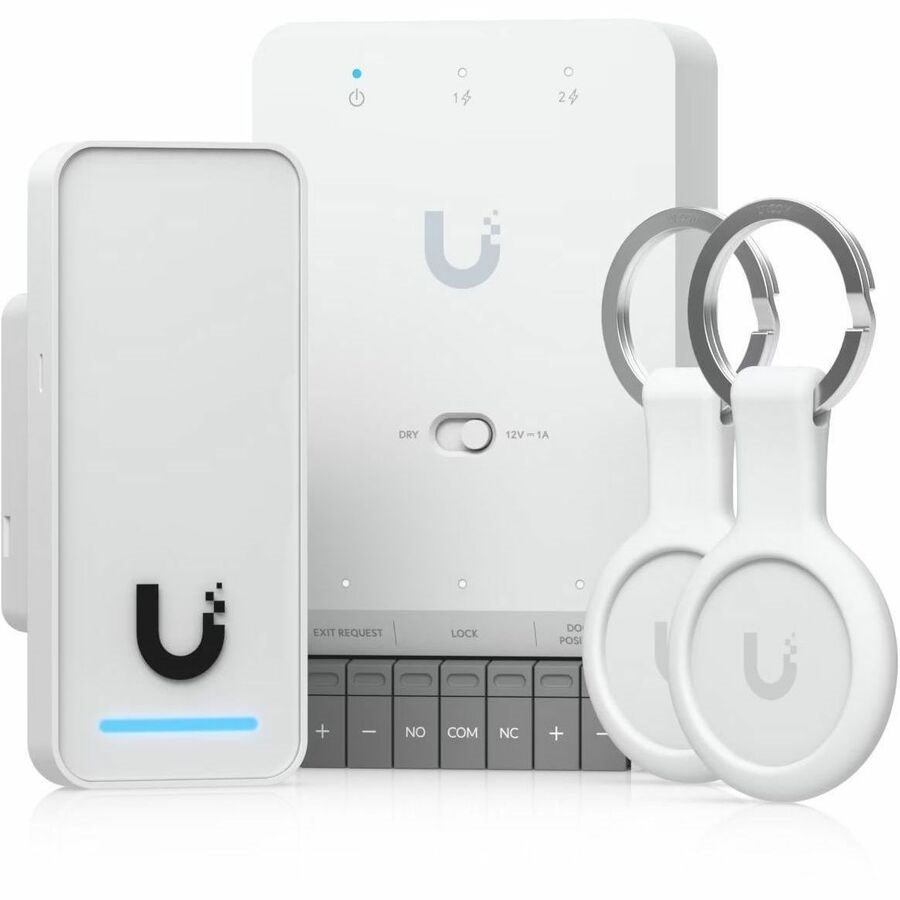

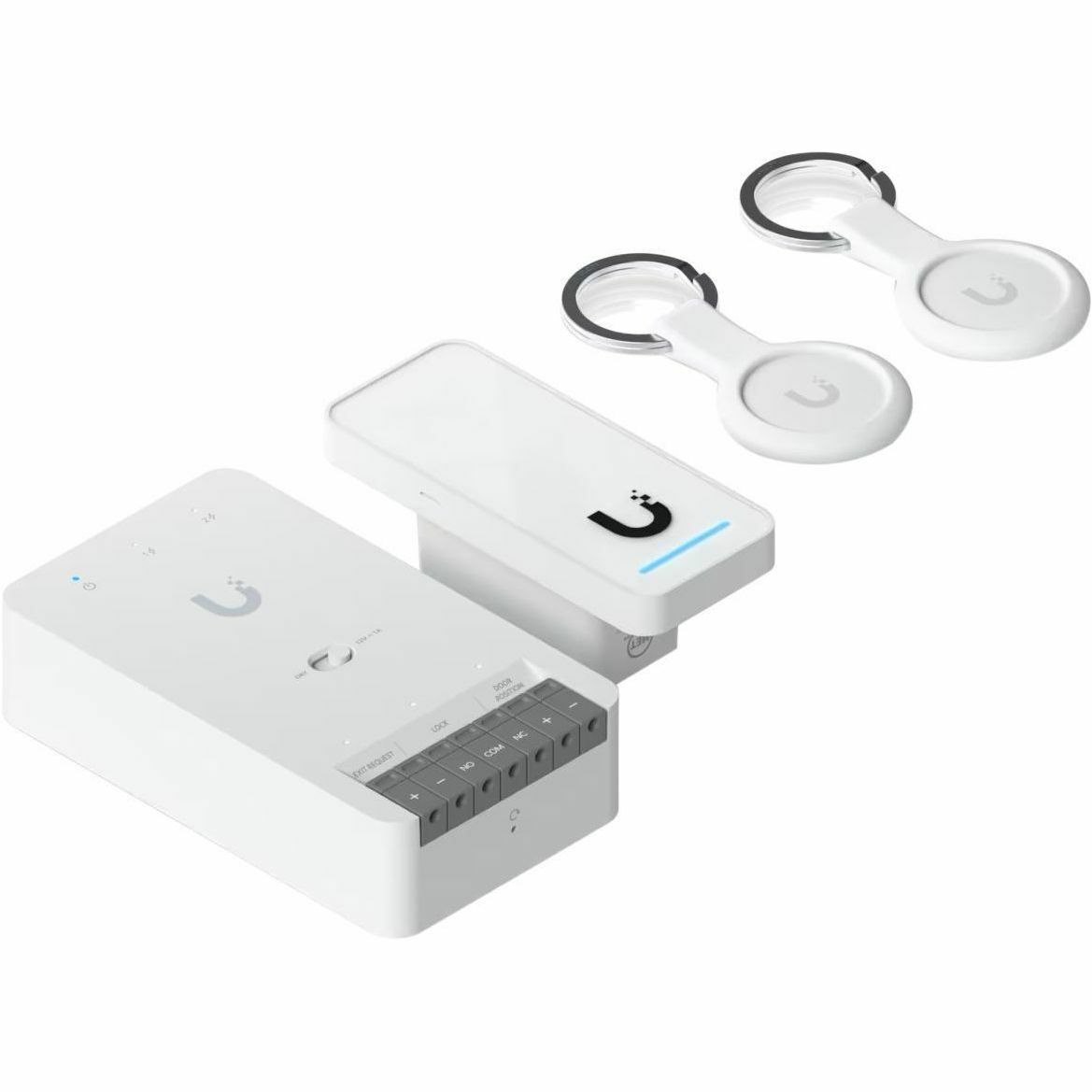

In the Box

• 1 × Door Hub Mini

• 1 × G3 Reader

• 2 × Pocket Keyfobs

• 10 × 1-year Touch Passes included

Door Hub Mini

Dimensions: 113 × 66 × 27.6 mm (4.4 × 2.6 × 1.1")
Supported Doors: 1
Maximum Users: 3,000

Inputs & Outputs:

• 1 × Door Exit Request

• 1 × Door Position Sensor

• Dry Output Relay: 30V DC, 1A

• Wet Output Relay: 12V DC, 1A

Power & Networking:

• PoE++ input: 50V DC, 1A

• PoE outputs: 2 × 50V DC, 30W each (Max 45W aggregated)

• Max Power Consumption: 19W (without PoE output), 50W (with PoE output)

• Networking: 3 × GbE RJ45

Physical & Environmental:

• Weight: 190 g (6.7 oz)

• Enclosure: Polycarbonate, metal

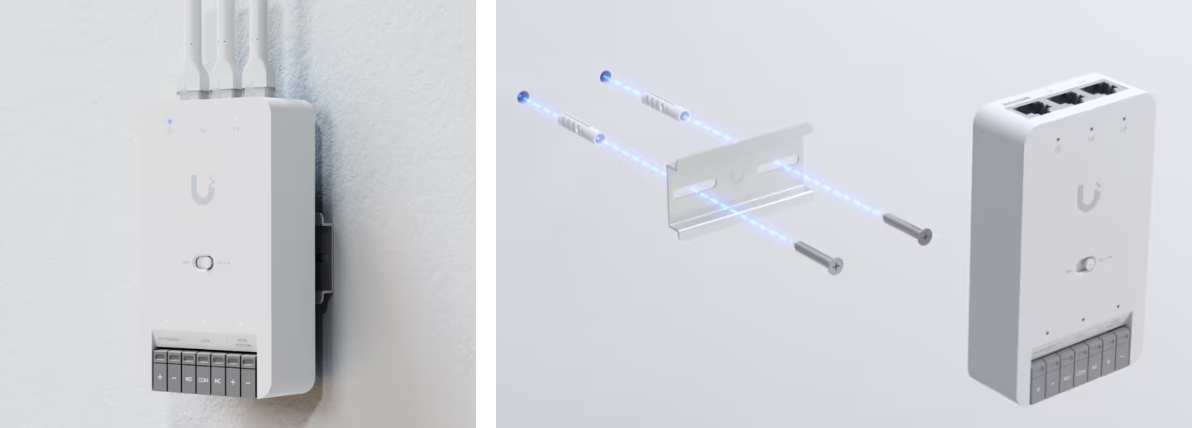

• Mounting: DIN-rail (included)

• Operating Temp: 0–40°C (32–104°F)

• Operating Humidity: 5–90% noncondensing

Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
UL 294 Level: I (Destructive attack, Line security, Endurance, Standby power)
NDAA Compliant: ✓

G3 Reader

Dimensions: 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4")
Access Options: NFC, Apple/Google Wallet, Mobile Unlock, Handwave Request to Exit
Weatherproofing: IP55
Power & Networking:

• PoE input: 48V DC, 5W max

• Networking: 1 × 10/100 MbE RJ45

• Connectivity: BLE 4.1, NFC

Physical & Environmental:

• Weight: 82 g (2.9 oz)

• Enclosure: Polycarbonate, glass

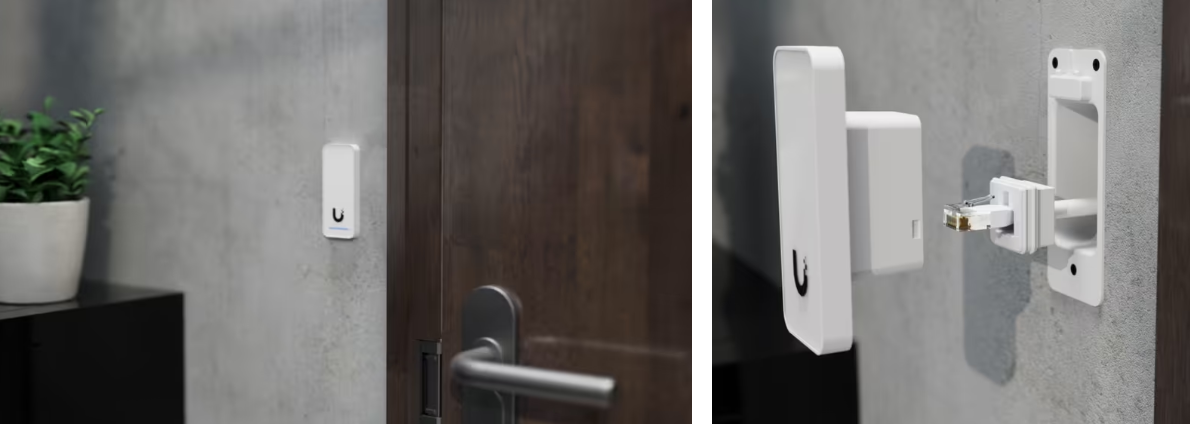

• Mounting: In-wall gang box (included), optional junction box

• Operating Temp: -30–45°C (-22–113°F)

• Operating Humidity: 5–90% noncondensing

NFC Specs:

• Frequency: 13.56 MHz

• Read Range: <30 mm (1.18")

• Supported Standards: ISO/IEC 14443A/B, 15693, 18092, MIFARE Classic/DESFIRE, Sony FeliCa (ID only), NFC Forum tags T1–T5, ECP 2.0

Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
UL 294 Level: I
NDAA Compliant: ✓

Pocket Keyfob

Dimensions: 84 × 39 × 7.4 mm (3.3 × 1.5 × 0.29")
Weight: 16 g (0.56 oz)
Enclosure: Polycarbonate, stainless steel, silicone rubber
Weatherproofing: IP54
NFC: 13.56 MHz, ISO/IEC 14443 Type A, MIFARE DESFire EV3, UniFi Access Proprietary Security Protocol
Operating Temp: -10–45°C (14–113°F)
Operating Humidity: 10–90% noncondensing
Certifications: CE
NDAA Compliant: ✓
