The UniFi UA-G3 In-Wall Access Controller provides secure, flexible access control in a compact design. Supporting multiple authentication methods—including NFC card/keyfob, mobile unlock, and Apple/Google Wallet—this device is ideal for both indoor and outdoor installations while maintaining NDAA compliance and UL 294 security standards.
Key Features:
Access Methods: NFC card & keyfob, mobile unlock, Apple/Google Wallet, handwave request-to-exit
Security Standards: NDAA compliant; UL 294 Level I (destructive attack, line security, endurance, standby power)
Weatherproofing: IP55

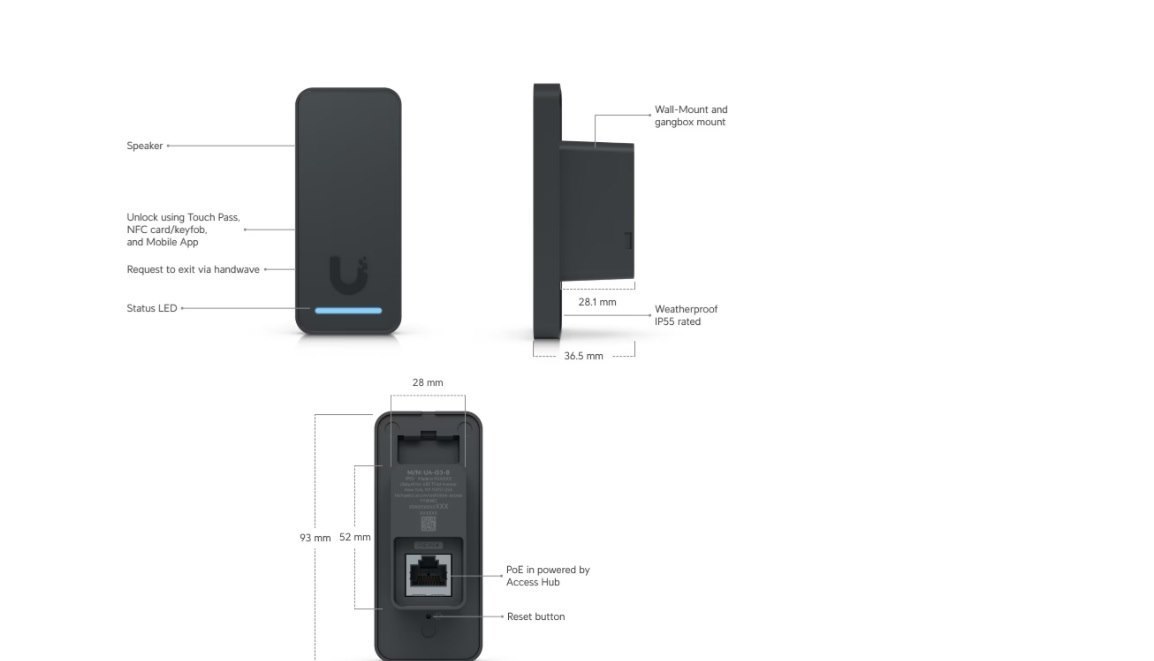

Mechanical: 93 × 40 × 36.5 mm (3.7 × 1.6 × 1.4 in), 82 g; enclosure: polycarbonate and glass; mount: aluminum alloy
Mounting Options: In-wall gang box included; junction box optional
Hardware & Connectivity:
Indoor/outdoor use
Networking: (1) 10/100 MbE RJ45 port, PoE powered (48V DC, max 5W)
BLE 4.1, NFC (13.56 MHz, <30 mm read range, supports MIFARE, Sony FeliCa, NFC Forum T1–T5 tags)
Proximity sensor, speaker, RGBW LEDs, factory reset button
ESD/EMP protection: Air ±15kV, contact ±8kV
Operating Conditions: -30 to 45°C (-22 to 113°F), 5–90% RH non-condensing
Certifications: CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
Ideal For:
Secure in-wall access control for commercial or residential environments requiring compact design, multiple authentication options, and high security standards.
