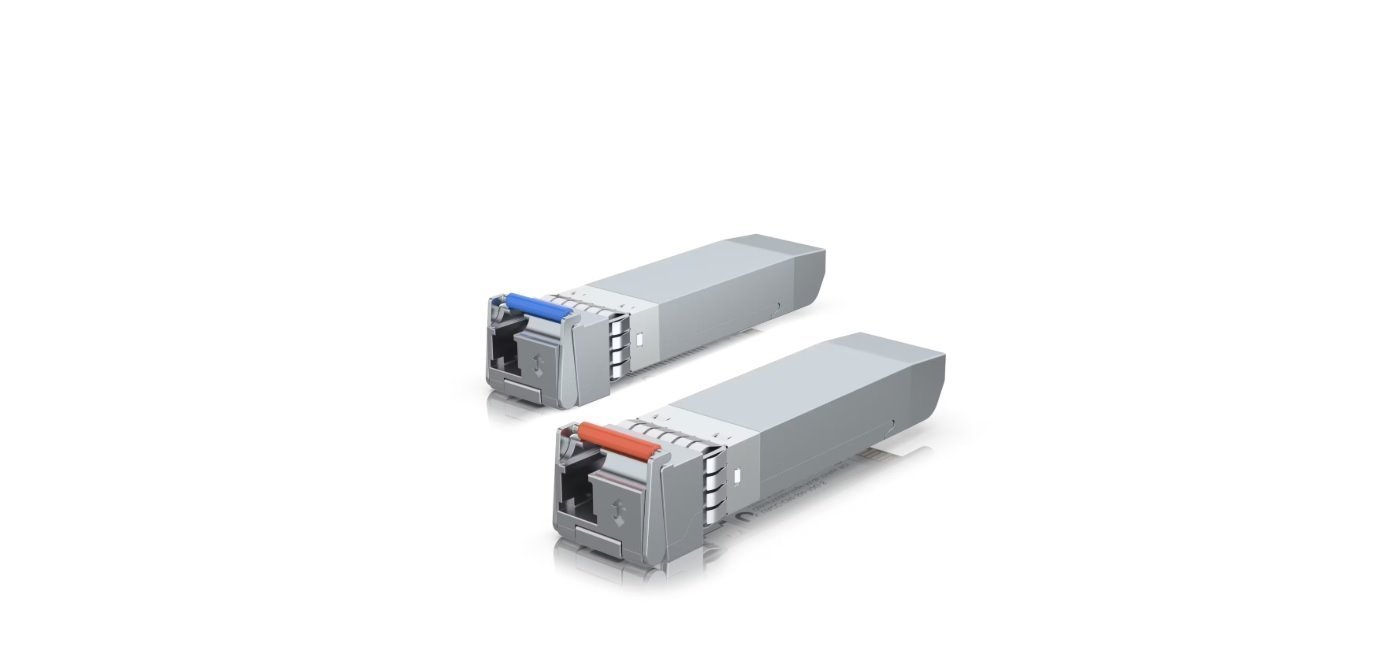

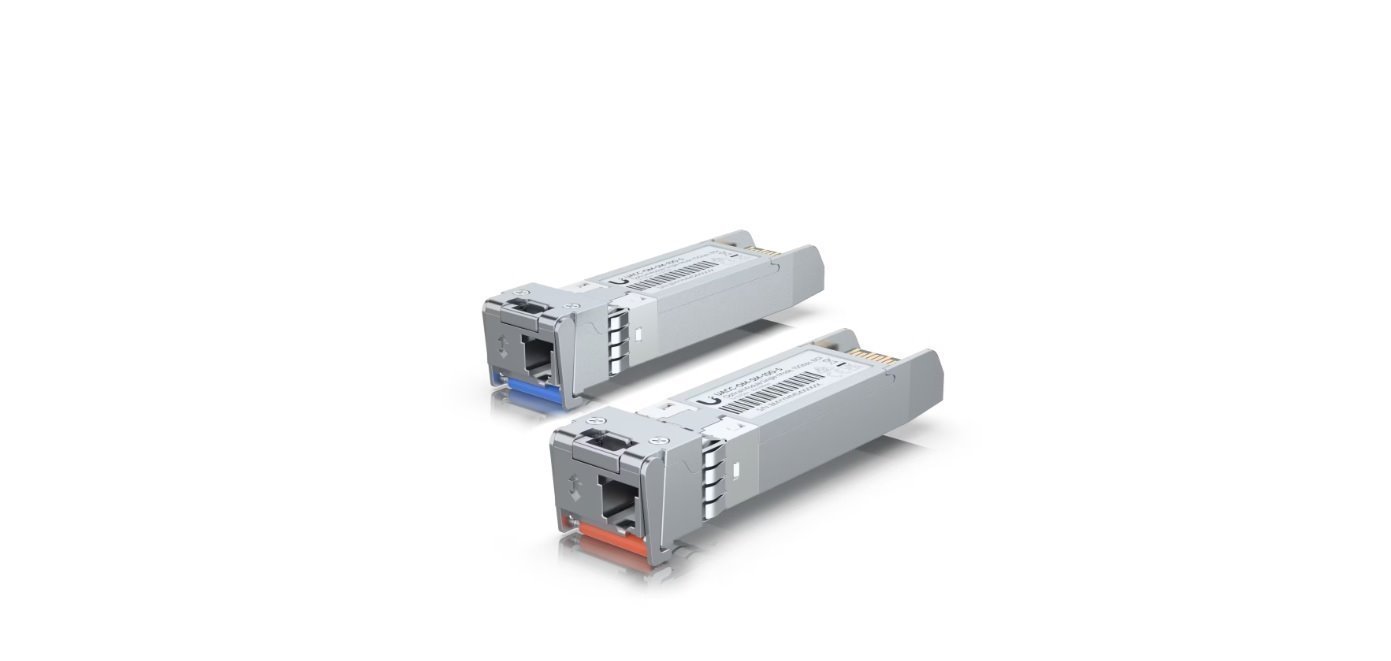

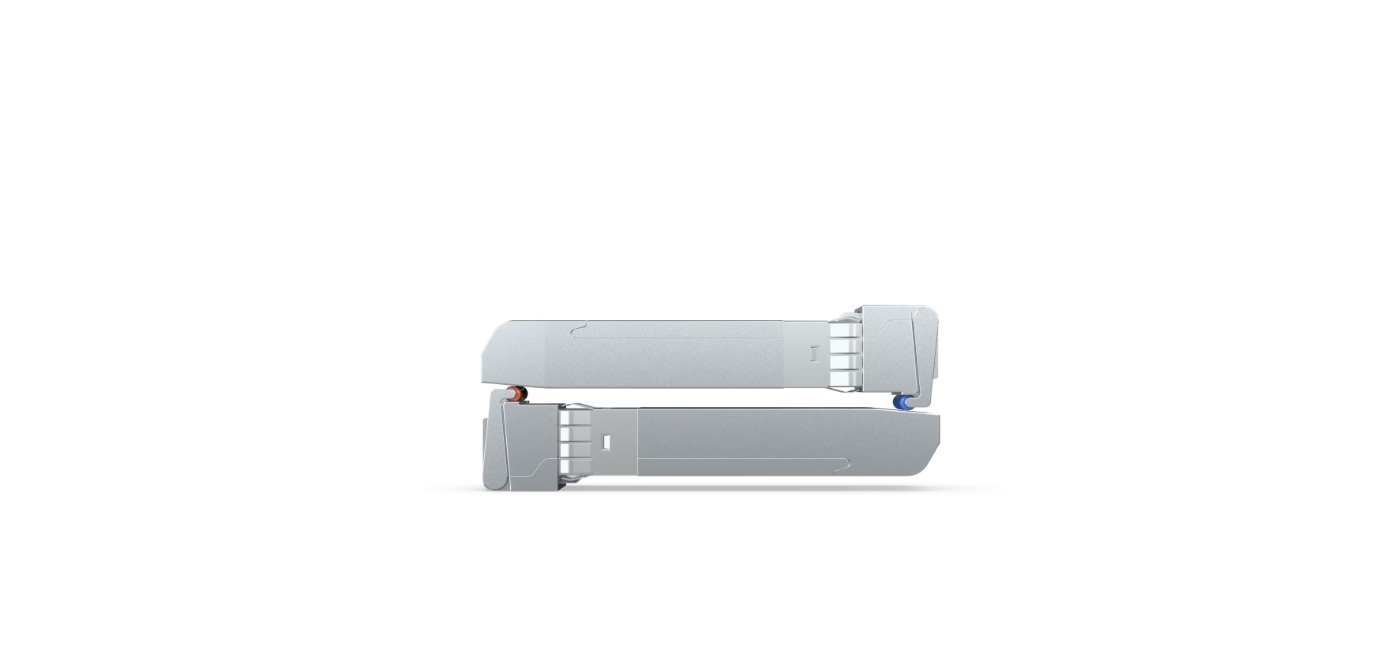

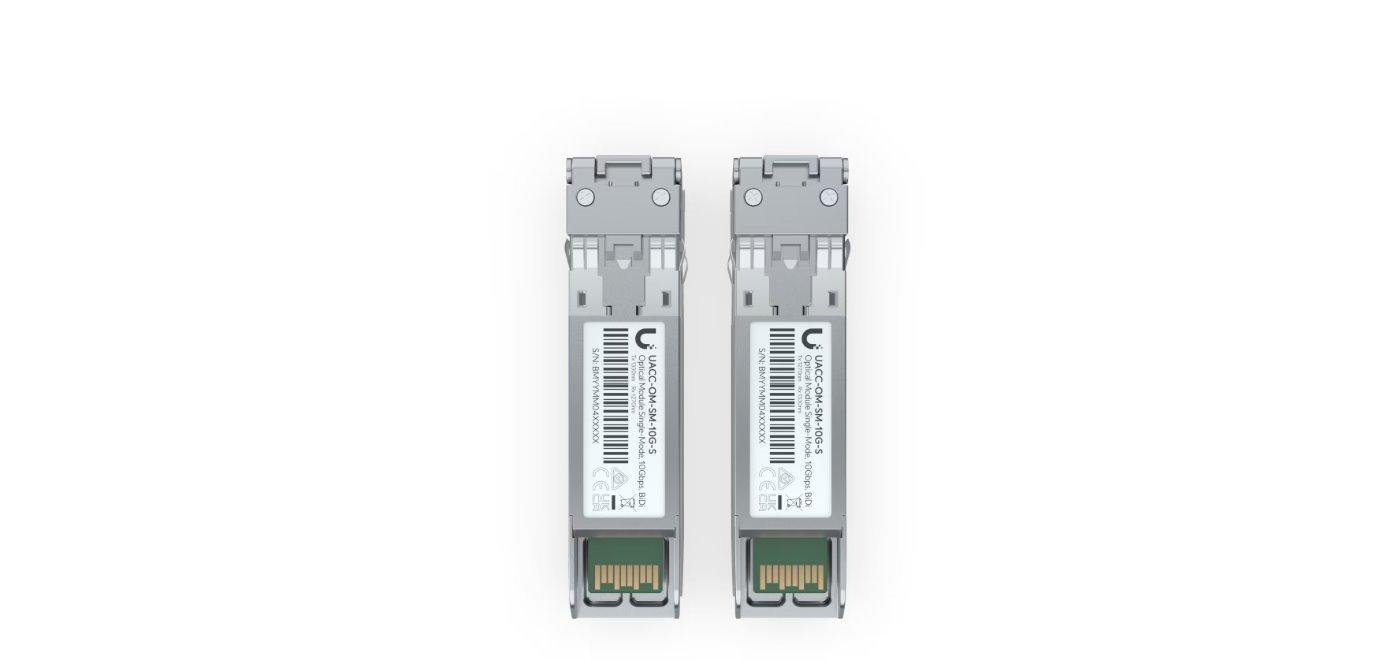

SFP+ transceiver that supports 10G connections up to 10 km using single-mode fiber with a duplex LC UPC connector.
Max data rate: 10 Gbps
Compatible with SFP+ and SFP interfaces
Duplex LC UPC connector
Supports single-mode fiber connections up to 10 km*
*Fiber cable is not included.
Form Factor & Connectivity
Form Factor: SFP
Connector: Duplex LC UPC
Supported Media: Single-Mode Fiber (SMF)
TX Wavelength: 1310 nm
RX Wavelength: 1310 nm
Supported Data Rates: 1 Gbps / 10 Gbps
Supported Cable Distance: 10 km (6.2 mi)
Power & Environmental
Max. Power Consumption: 1 W
Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
Packaging Options
2-Pack
20-Pack
Safety Notice
CLASS 1 LASER PRODUCT — IEC/EN 60825-1:2014
⚠ Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
