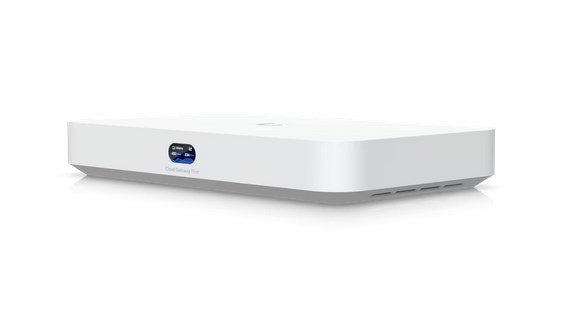

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.
Dimensions
212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5")
Weight
Without SSD: 675 g (1.5 lb)
With SSD: 734 g (1.6 lb)
UniFi Application Suite
Network: ✓
Protect: ✓
Access: ✓
Talk: ✓
Connect: ✓
Managed UniFi Devices
50+
Managed Cameras
15 HD
8 2K
5 4K
Simultaneous Users Connected
500+
Max. WAN Port Count
6
Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45
Port Layout
(4) 2.5 GbE RJ45 (2.5G/1G/100M/10M)
(1) 10 GbE RJ45 (10G/2.5G/1G)
(2) 10G SFP+ (10G/1G)
Form Factor
Compact desktop
Firewall & Network Features
Stateful Firewall: ✓
Application-Aware Layer 7 Firewall: ✓
DPI & Traffic Identification: ✓
Zone-Based Firewall (Regions, Domains, Apps): ✓
Content Filtering: ✓
Intrusion Prevention (IPS/IDS): ✓
Ad Blocking: ✓
IDS/IPS Signatures: 55,000+ with CyberSecure
VLAN/Subnet-Based Traffic Segmentation: ✓
License-Free SD-WAN: ✓
Internet Quality and Outage Reporting: ✓
VPN Features
Site-to-Site VPN
Site Magic: ✓
IPsec: ✓
OpenVPN: ✓
VPN Server
Identity Endpoint One-Click VPN: ✓
Teleport Zero-Configuration VPN: ✓
WireGuard: ✓
OpenVPN: ✓
L2TP: ✓
VPN Client
OpenVPN: ✓
WireGuard: ✓
Advanced Networking
Multi-WAN Load Balancing: ✓
Dynamic Routing (OSPF): ✓
Advanced QoS: ✓
Multicast DNS (mDNS): ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
Integrated RADIUS Server: ✓
RADIUS over TLS (RadSec): ✓
Additional Internet Failover with UniFi LTE Backup: ✓
MAC Address Table Size
4,000
NVR Storage
Selectable NVMe SSD up to 2 TB
PoE Budget
30W
Voltage Range (PoE Mode)
50–57V
Max. Power Consumption
29.4W (excluding PoE output)
Power
Power Method: DC jack (54V DC / 1.1A)
Power Supply: 54V DC / 1.1A (adapter included)
Supported Voltage Range: 100–240V AC
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
3 GB
Management
Ethernet, Bluetooth
Networking Interface
Multiple GbE and SFP+ ports (as listed above)
Display
0.96" LCM status display
LEDs
Ethernet: ✓
SFP+: ✓
Button
(1) Factory-reset
Enclosure Material
Polycarbonate
ESD/EMP Protection
Air: ± 8kV
Contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
